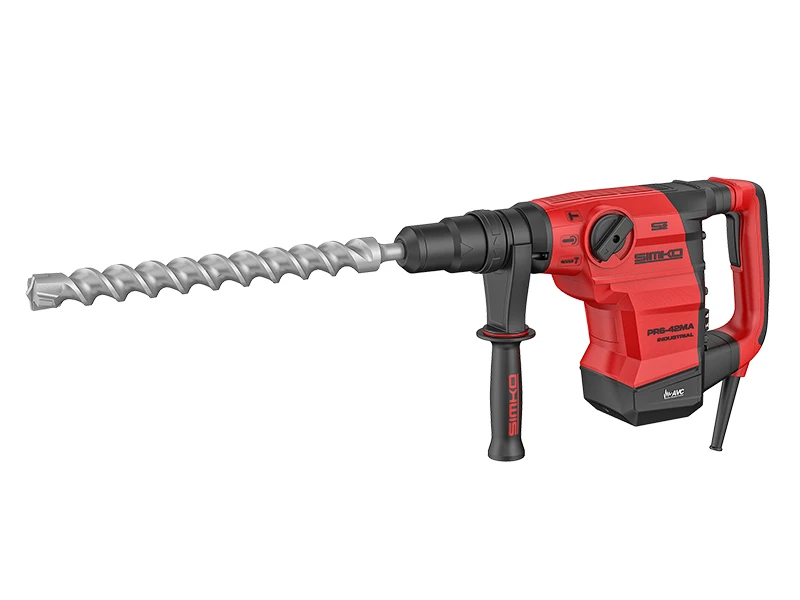

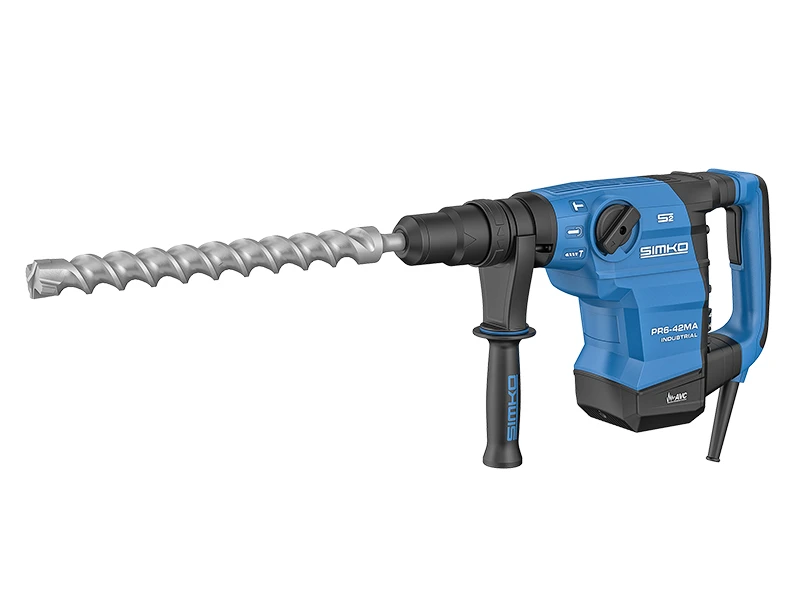

PR6-42MA
Rotary Hammer
● Two modes settings-Rotary drilling & hammer only with idle position.
● Chiseling angle adjustable by 12-steps lock; enabling you to adapt it to each work situation. (e.g. when using tile chisels)
● Anti-Vibration System, to reduced fatigue.
● Trigger switch and Ergonomic handle with soft grip.
● 6-steps setting wheel and constant Speed Control for variable adjustment of the speed and impact rate for optimum performance .
● Indicator of power supply.
● Indicator of Carbon Brush maintenance.
● Low vibration & noise design with high impact energy.
● 360°Auxiliary handle.
● Safety clutch device.
● Grease Lubrication.
Get in touch with us
Let us contact you for more information, availability and pricing.
E-mail: [email protected] [email protected]
Tel: +86-579-8729 2869 / +86-579-8729 8259
Technical Specification
| Rated voltage | 220-240/120V |
| Frequency | 50/60Hz |
| Rated input | 1200W/11.5AMPS |
| No load speed | 235-514rpm |
| Impact rate at rated speed | 1350-2950bpm |
| Impact energy | 2-10J |
| Tool holder | SDS-Max |
| Max. Drilling dia. concrete | Φ42mm |
| Optimum. appl. range concrete | Φ18mm-Φ32mm |
| Max. dia. concrete core cutters | Φ90mm |
Size and Weight
| Weight(based on EPTA) | 6.52kg |
| Size | 486x260x117mm |
Packing Data
| Unit quantity | 1pcs |
| Size | 595x157x430mm/529x168x400mm |
| G.W/N.W | 10.5/9.5kg |
| Loading QTY in 20ft container | 720 |
Accessories Included
| Auxiliary handle | (ID 26.01.0391） |
| Depth stopper | (ID 22.02.0015） |
| Carbon brush | (ID 24.03.0122 for 220V）/ (ID 24.03.0123 for 120V） |
| Spare grease tube | (ID 88304012 for 30g） |
| Carrying case | (ID 88302055 IMC / Metal locker/ Plastic locker) / (88302068 BMC) |
