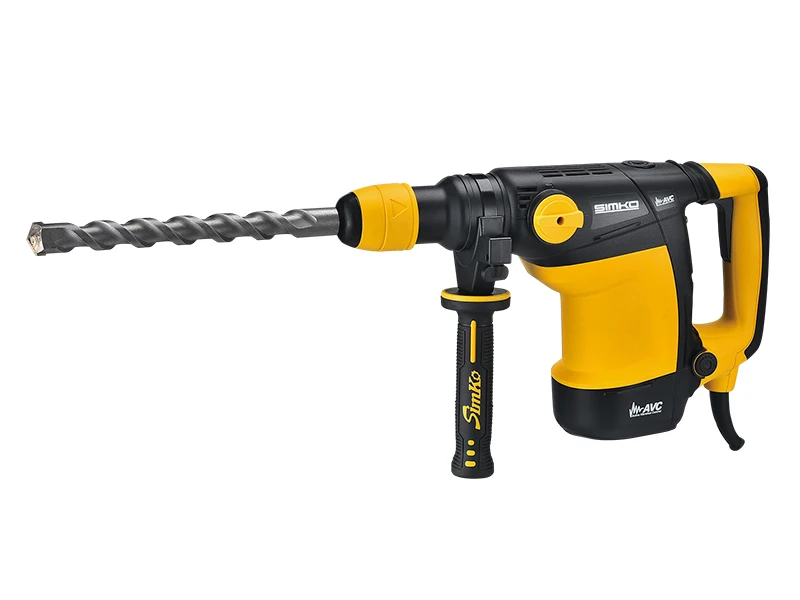

SR610-35MA
Rotary Hammer

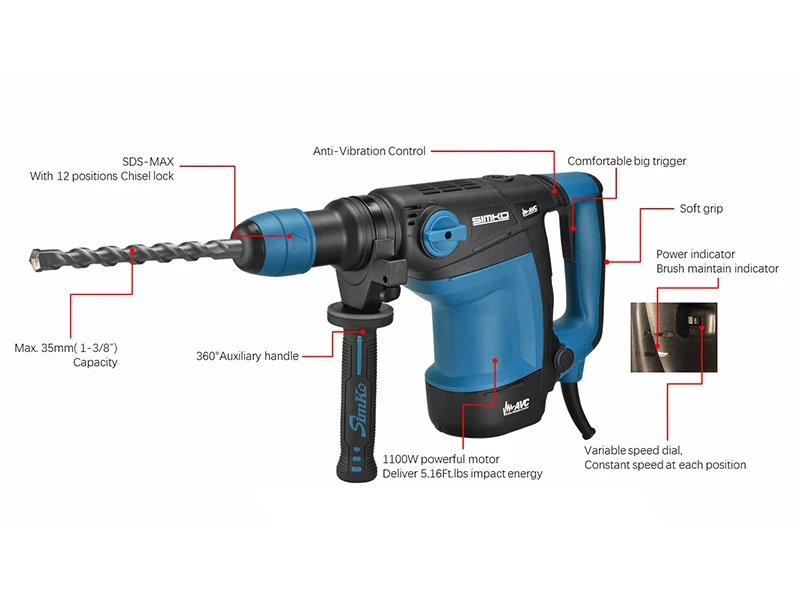

● Two modes settings-Rotary drilling & hammer only with idle position.
● Chiseling angle adjustable by 12-steps lock, enabling you to adapt it to each work situation. (e.g. when using tile chisels)
● Anti-Vibration System, to reduced fatigue.
● Trigger switch and Ergonomic handle with soft grip.
● 6-steps setting wheel and constant Speed Control for variable adjustment of the speed and impact rate for optimum performance .
● Indicator of power supply.
● Indicator of Carbon Brush maintenance.
● Low vibration & noise design with high impact energy.
● 360°Auxiliary handle.
● Safety clutch device.
Get in touch with us
Let us contact you for more information, availability and pricing.
| Rated voltage | 220-240/120V |
| Frequency | 50/60Hz |
| Rated input | 1100W/10AMPS |
| No load speed | 300-760rpm |
| Impact rate at rated speed | 1950-4860bpm |
| Impact energy | 1-7J |
| Tool holder | SDS-Max |
| Max. Drilling dia. concrete | Φ35mm |
| Optimum. appl. range concrete | Φ16mm-Φ28mm |
| Max. dia. concrete core cutters | Φ90mm |
| Weight(based on EPTA) | 6.14kg/13.5Lb |
| Size | 456x264x105mm/17.9"x10.4"x4.1" |
| Unit quantity | 2pcs |
| Size | 460x265x380mm |
| G.W/N.W | 10.5/9.5kg |
| Loading QTY in 20ft container | 1280 |
| Auxiliary handle | (ID 26.01.0391） |
| Depth stopper | (ID 22.02.0093） |
| Carbon brush | (ID 24.03.0124 for 220V）/(ID 24.03.0125 for 120V） |
| Spare grease tube | (ID 30.12.0001 for 30g） |
| Carrying case | (ID 30.03.0571 BMC) / ID 30.03.0406 Metal locker / ID 30.03.0417 Plastic locker IMC) |
