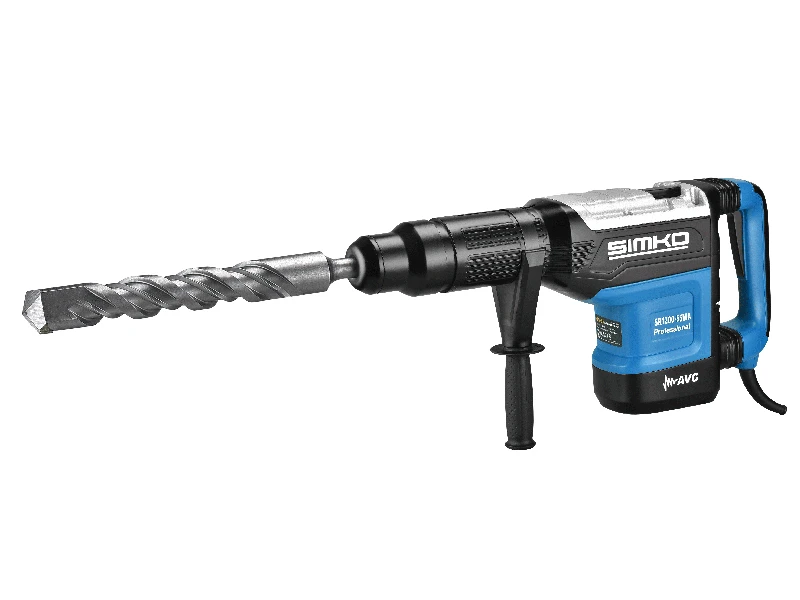

SR1200-55MA
Rotary Hammer

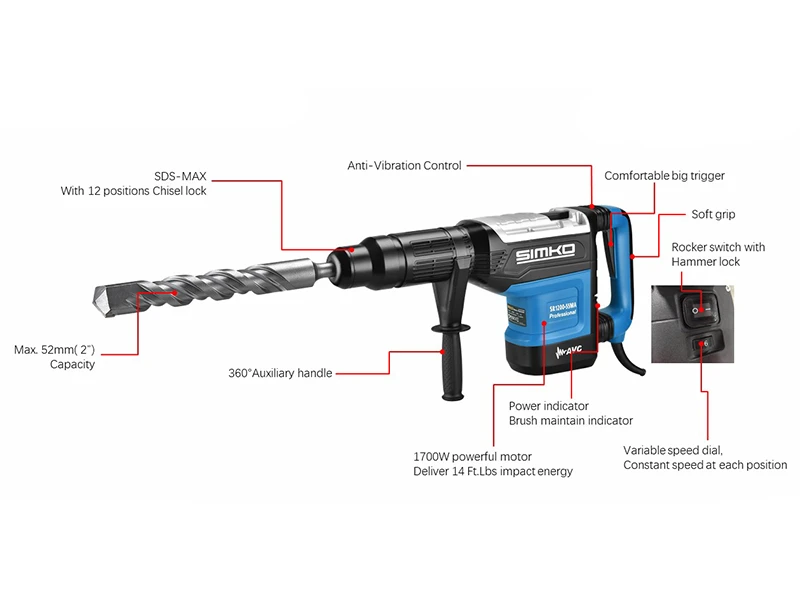

● Two modes settings-Rotary drilling & hammer only with idle position.
● Chiseling angle adjustable by 12-steps lock, enabling you to adapt it to each work situation. (e.g. when using tile chisels)
● Anti-Vibration System, to reduced fatigue.
● Trigger switch and Ergonomic handle with soft grip.
● 6-steps setting wheel and constant Speed Control for variable adjustment of the speed and impact rate for optimum performance .
● Indicator of power supply.
● Indicator of Carbon Brush maintenance.
● Low vibration & noise design with high impact energy.
● 360°Auxiliary handle.
● Safety clutch device.
● Hammer lock function.
Get in touch with us
Let us contact you for more information, availability and pricing.
E-mail: [email protected] [email protected]
Tel: +86-579-8729 2869 / +86-579-8729 8259
Technical Specification
| Rated voltage | 220-240/120V |
| Frequency | 50/60Hz |
| Rated input | 1700W/15AMPS |
| No load speed | 100-220rpm |
| Impact rate at rated speed | 1000-2150bpm |
| Impact energy | 5-19J/3.7-14Ft/lbs |
| Tool holder | SDS-Max |
| Max. Drilling dia. concrete | Φ55mm |
| Optimum. appl. range concrete | Φ25mm-Φ50mm |
| Max. dia. concrete core cutters | Φ150mm /Φ6'' |
Size and Weight
| Weight(based on EPTA) | 12kg/26.4lbs |
| Size | 613x348x123mm/24''x13.7''x4.8'' |
Packing Data
| Unit quantity | 1pcs |
| Size | 690x160x510mm |
| G.W/N.W | 16.5/15.5kg |
| Loading QTY in 20ft container | 550 |
Accessories Included
| Auxiliary handle | (ID 26.01.0391） |
| Carbon brush | (ID 24.03.0071 for 220V）/(ID 24.03.0072 for 120V） |
| Spare grease tube | (ID 30.12.0004 for 60g） |
| Carrying case | (ID30.03.0617 BMC) |
