Core Bits
Core Bits
Get in touch with us
Let us contact you for more information, availability and pricing.
E-mail: [email protected] [email protected]
Tel: +86-579-8729 2869 / +86-579-8729 8259
Technical Specification
 | ||
| ID No. | Length(mm) | Thread size(mm) |
| 88020242 | 100 | M22 |
| 88020243 | 115 | M22 |
| 88020244 | 200 | M22 |
| 88020245 | 250 | M22 |
| 88020246 | 300 | M22 |
| 88020247 | 350 | M22 |
| 88020248 | 530 | M22 |
 | ||
| ID No. | Length(mm) | Thread size(mm) |
| 88020249 | 250 | M22 |
| 88020250 | 350 | M22 |
| 88020251 | 400 | M22 |
| 88020252 | 530 | M22 |
| Drill Bit | ||
| ID No. | Diameter(D) | Length(L1) |
| 88020253 | 8 | 10 |
 | |||

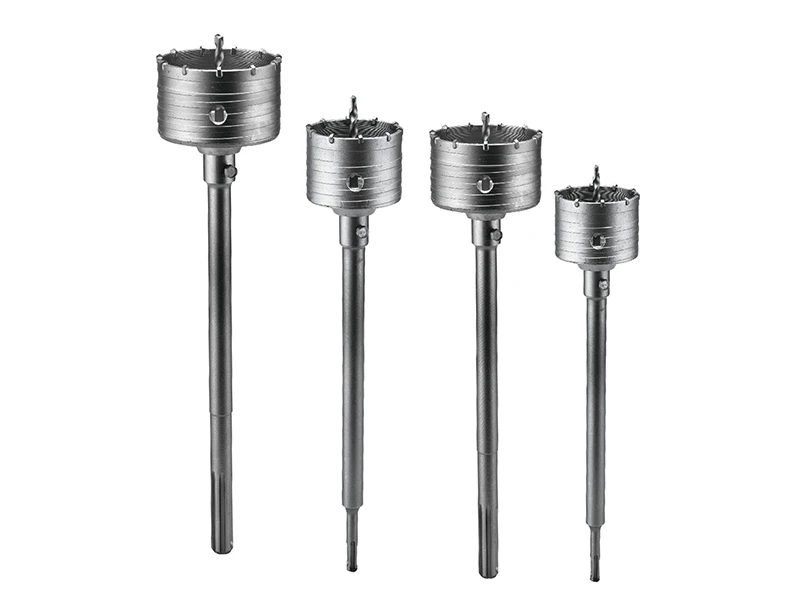

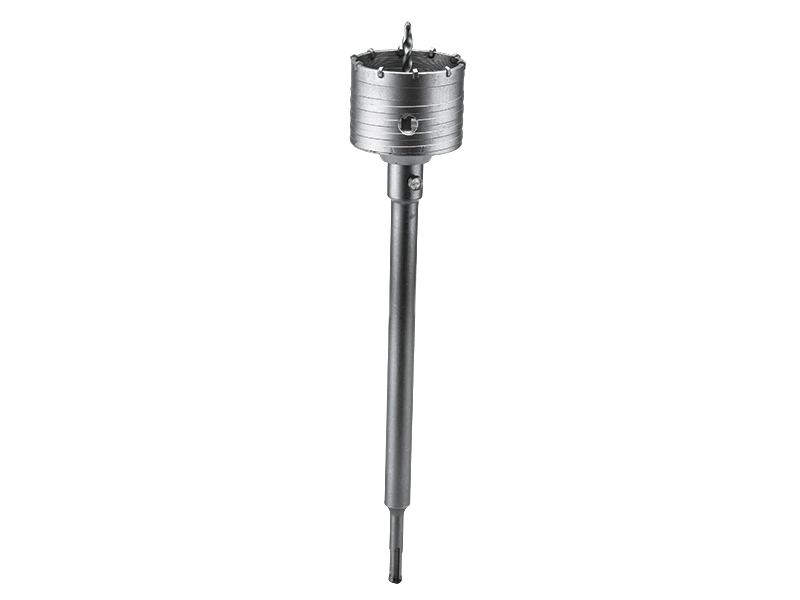

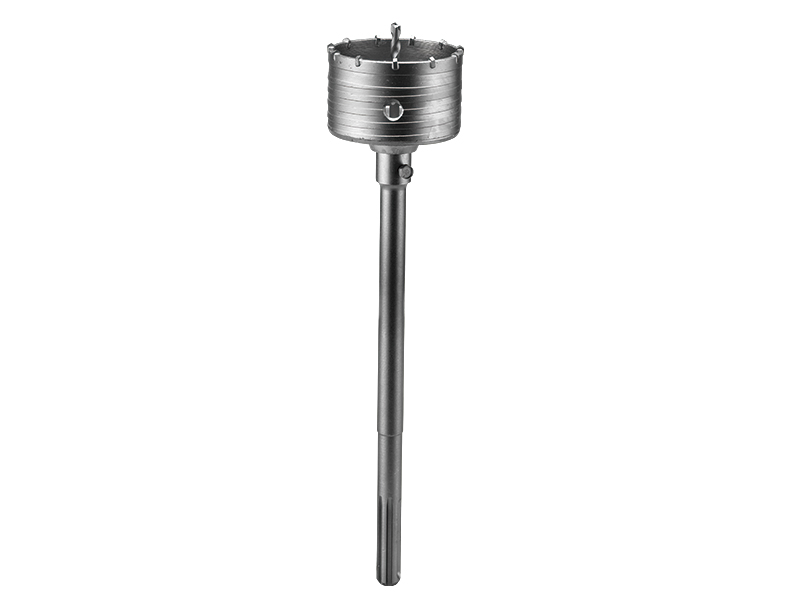

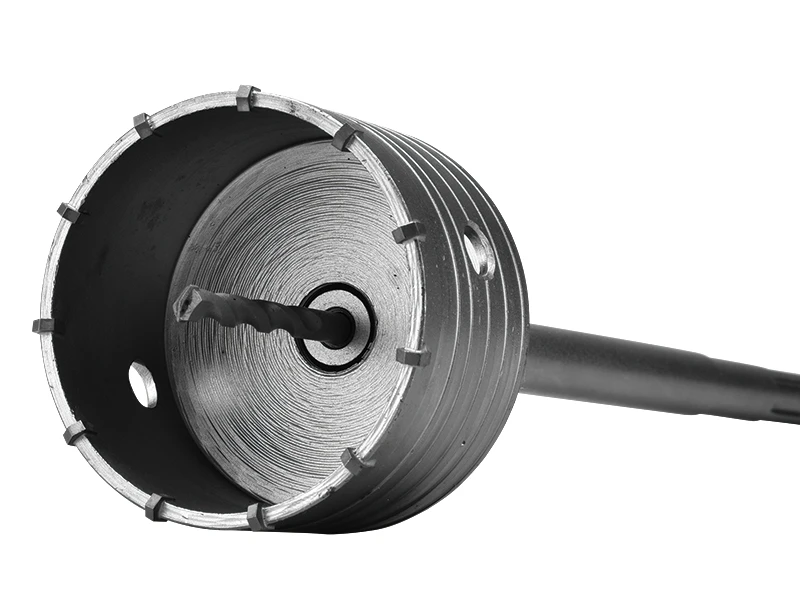

| Core Bit | |||
| ID No. | Diameter(D) | Length(L) | Thread size(mm) |
| 88020058 | 30 | 72 | M22 |
| 88020059 | 35 | 72 | M22 |
| 88020060 | 40 | 72 | M22 |
| 88020061 | 45 | 72 | M22 |
| 88020062 | 50 | 72 | M22 |
| 88020063 | 55 | 72 | M22 |
| 88020064 | 60 | 72 | M22 |
| 88020075 | 65 | 72 | M22 |
| 88020076 | 70 | 72 | M22 |
| 88020077 | 75 | 72 | M22 |
| 88020078 | 80 | 72 | M22 |
| 88020079 | 85 | 72 | M22 |
| 88020080 | 90 | 72 | M22 |
| 88020081 | 95 | 72 | M22 |
| 88020082 | 100 | 72 | M22 |
| 88020083 | 105 | 72 | M22 |
| 88020084 | 110 | 72 | M22 |
| 88020085 | 115 | 72 | M22 |
| 88020086 | 120 | 72 | M22 |
| 88020240 | 125 | 72 | M22 |
| 88020241 | 150 | 72 | M22 |
