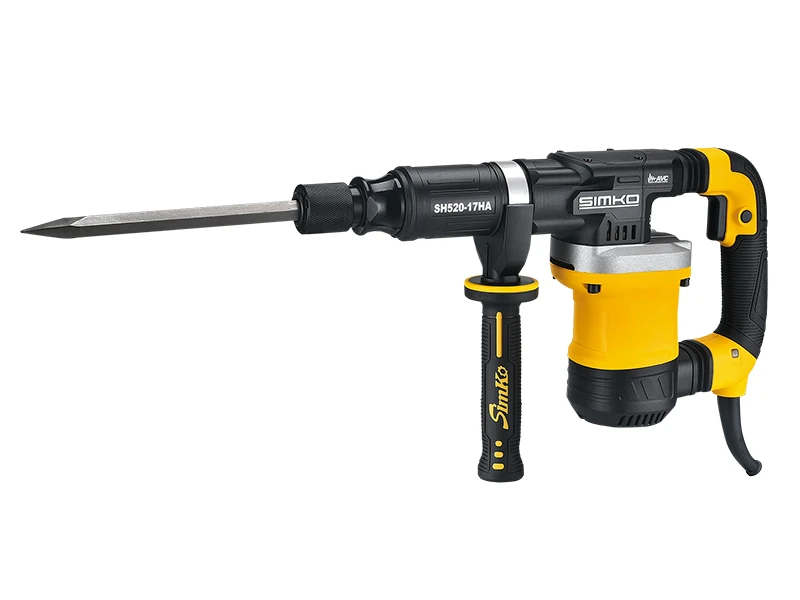

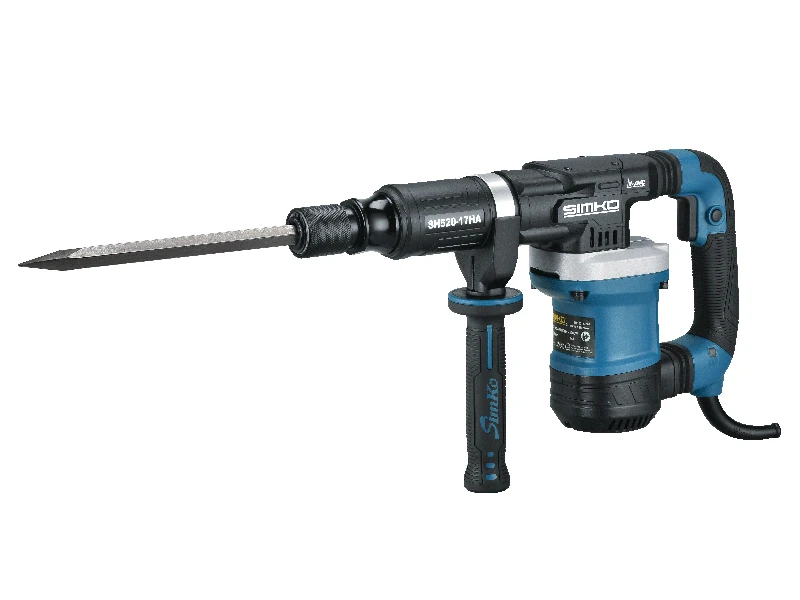

SH520-17HA
Demolition Hammer
● Anti-Vibration System, reduced fatigue.
● Lock-on switch and Ergonomic handle with soft grip.
● Low vibration & noise design with high impact energy.
● 360° Auxiliary handle.
● Indicator of power supply.
● Chiseling angle adjustable by 12-steps lock, enabling you to adapt it to each work situation. (e.g. when using tile chisels)
Get in touch with us
Let us contact you for more information, availability and pricing.
E-mail: [email protected] [email protected]
Tel: +86-579-8729 2869 / +86-579-8729 8259
Technical Specification
| Rated voltage | 230/120V |
| Frequency | 50/60Hz |
| Rated input | 1200W/10AMPS |
| Impact rate | 3100bpm/min |
| Impact energy | 14J |
| Tool holder | HEX 17mm |
Size and Weight
| Weight(based on EPTA) | 5.46kg |
| Size | 464x244x95mm |
Packing Data
| Unit quantity | 2pcs |
| Size | 555x337x380mm |
| G.W/N.W | 19.1/18.1kg |
| Loading QTY in 20ft container | 860 |
Accessories Included
| Auxiliary handle | (ID 26.01.0391） |
| Carbon brush | (ID 24.03.0124 for 220V）/(ID 24.03.0125 for 120V） |
| Spare grease tube | (ID 30.12.0001 for 30g） |
| Tine chisel | (ID 02.01.0002）;17x280mm（HEX） |
| Flat chisel | (ID 02.01.0003）;17x280mm（HEX） |
| Carrying case (Spare part No) | (ID 30.03.0375 BMC-US style) / (ID 30.03.0670 BMC style) |
